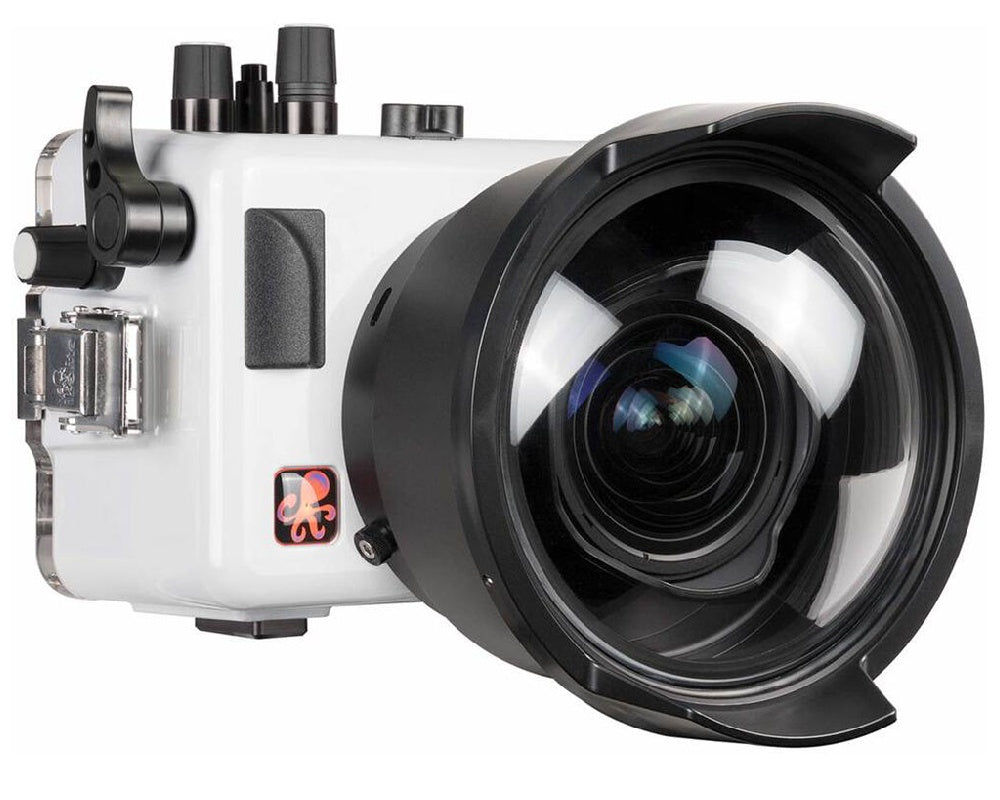

IKELITE UNDERWATER HOUSING 200DLM/B FOR PANASONIC LUMIX GX9

Capture images and video at depths 200' beneath the surface using this IKELITE UNDERWATER HOUSING 200DLM/B FOR PANASONIC LUMIX GX9. Large, ergonomic mechanical controls provide access to virtually all camera functions.

SPECIFICATIONS:

• 200 ft (60m) depth rating
• DLM/B port mount
• Controls for all important camera functions
• Two 1/4-20 threaded tray mounts with 3" (76mm) spacing
• Slightly negative buoyancy in freshwater
• Actual buoyancy varies depending on the choice of lens and port
• 7 lb (1225 g)
• 7 x 5.8 x 5.3" (196 x 147 x 135 mm)
• ABS-PC, acrylic, and acetyl construction

Construction Details

• Made in the USA from white polycarbonate with a clear back to allow you to monitor the O-ring seal and maintain a full view of the camera

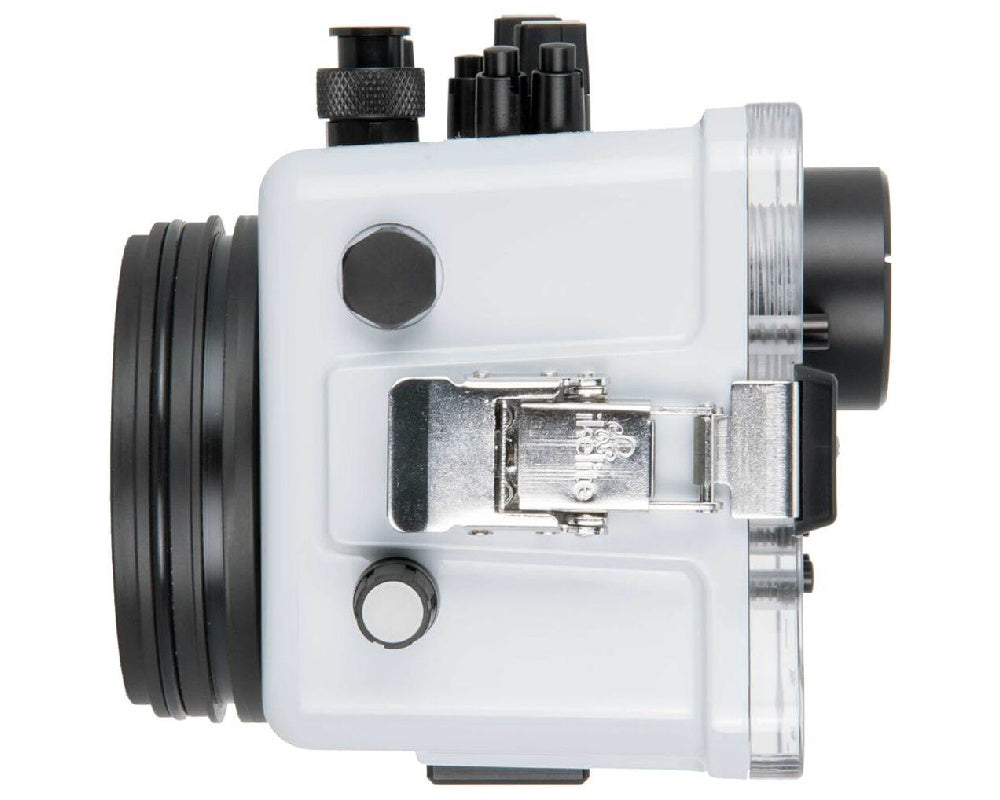

• Close two locking snaps on the sides to see the O-ring form a watertight seal

Controls and Handling

• Trigger-style shutter control lever, soft-touch knobs, and hard-anodized aluminum buttons provide control for all camera functions
• Lever access to AEL/AFL button

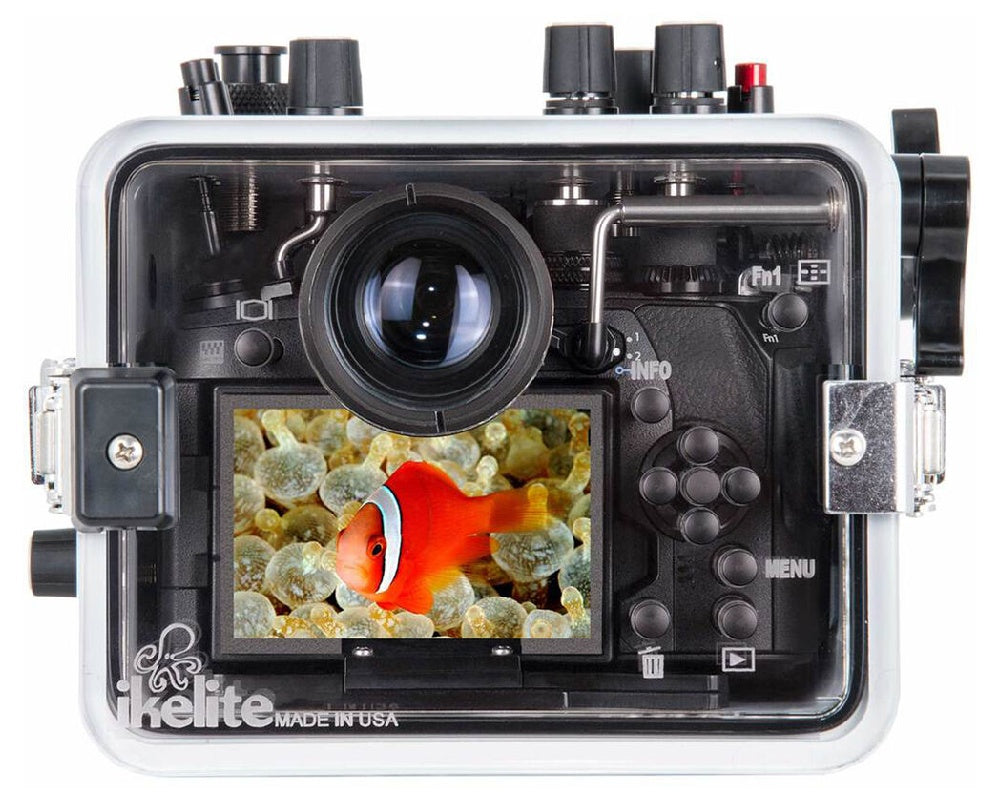

• The camera's LCD screen can be viewed edge to edge through the rear of the housing
• Super eye Viewfinder provides an enhanced view of the camera's optical viewfinder when viewed through a dive mask
• This OVF can be replaced easily by the optional Straight or 45° Magnified Optical Viewfinders, which enhance your view while eliminating vignetting and offering greater long-term comfort

Lens Port System

• Ships without a required lens port
• Accepts a series of interchangeable ports for a variety of zoom, macro, and wide-angle lenses; for details, see the Port Chart link above
• Attaching/changing ports is easy—just press on and tighten three thumb screws

Strobe Connection and Operation

• Sync cord and fiber-optic connectors
• Enjoy fast, accurate TTL exposure by adding the optional DL3 DS Link TTL Converter and Hot Shoe Kit #46036 and a compatible Ikelite DS strobe
• The camera's flash can trigger external strobes through fiber-optic ports
