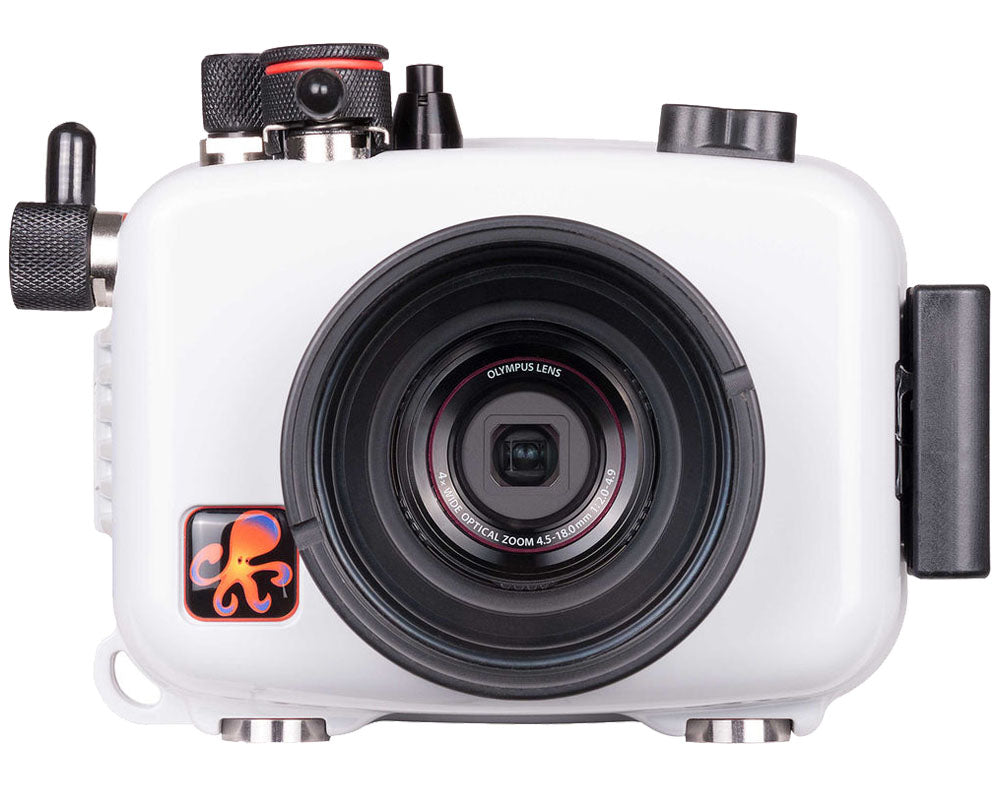

IKELITE UNDERWATER HOUSING FOR OLYMPUS TOUGH TG-5, TG-6, TG-7

You can capture sharp, detailed photos and brilliant 4K video at depths as great as 200' beneath the surface, thanks to IKELITE UNDERWATER HOUSING FOR OLYMPUS TOUGH TG5, TG6, TG7. Dual fiber-optic ports enable the connection of optional, external strobes for illumination and color correction. Ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers, afford virtually all camera functions.

Construction Details

• Depth rating of 200'
• Made by hand in the USA from a corrosion-resistant polycarbonate and ABS plastic blend
• White/light gray on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface
• Clear in back to allow you to monitor the O-ring seal and maintain a view of the camera's rear controls
• Controls are crafted from durable, hard-anodized aluminum and acetyl, which, like the ABS and PC of the body, are corrosion resistant

Controls and Handling

• Large, ergonomic mechanical controls, including push-buttons, knurled knobs/dials, and levers provide access to all camera functions except for the Log Switch
• A side-mounted shutter lever and a redesigned zoom control make shooting easy
• Optional tray with a quick-release grip provides comfort and improves overall balance and handling beneath the surface
• Housing has slightly positive buoyancy in freshwater

Lens Port

• Built-in, flat glass lens port with a 3" diameter
• Features 67mm threads designed to accept optional wide-angle and macro conversion lenses, a.k.a. "wet lenses"
• Wide-angles increase your field of view, allowing you to get closer to your subject while fitting more in the frame; macros allow for extreme close-ups with great clarity and detail
• Both types of lenses reduce the amount of water between you and your subjects to minimize distortion and improve color, exposure, and clarity
• Recommended Ikelite WD-3 Wide-Angle Dome provides a mid-range field of view and does not result in any vignetting
• Ikelite W-30 Wide-Angle Lens, INON UWL-H100, and other 67mm wide lenses offer greater coverage, but some vignetting and edge distortion will occur. However, these effects can be minimized or eliminated via smaller apertures, zooming in, and/or cropping in post-production
• Macro lenses with 67mm threads are available from INON, Epoque, and other brands
• External color-correction filters with 3.0" diameters can be pressed directly onto the port, while those with 3.6" diameters can be attached to many wide-angle wet lenses

Strobe Connection and Operation

• A built-in flash is not suitable for illuminating photos underwater but can trigger optional, external strobes via fiber-optic cables
• Use of an optional, external strobe will be extremely helpful once you descend farther than 15-20' underwater, except when shooting with color filters on very clear days with bright sunlight
• Strobe restores hues that get absorbed by the water, so your images are vibrant and accurate
• Try to stay no more than 3-4' away from the subject to preserve natural colors in images
• Housing is equipped with two fiber-optic ports
• Any Ikelite DS strobe can be connected via the #4401.1 Fiber-Optic Converter and #4501 Fiber Optic Cord
• O. Converter effectively turns the sync cord bulkhead of the DS strobe into a fiber-optic port and allows for manual exposure
• Compatible fiber-optic cords: Ikelite #4501 Fiber-Optic Coiled Cord, INON "Non-Wireless" L-Type Optical D Cable, Sea & Sea #50107 L-Type Fiber-Optic Cable, Sea & Sea #50128 Fiber Optic Cable II, Olympus PTCB-E02 UW Fiber-Optic Cable, Nauticam-to-INON #26211 Optical Fiber Cable, Nauticam-to-Sea & Sea #26212 Optical Fiber Cable
