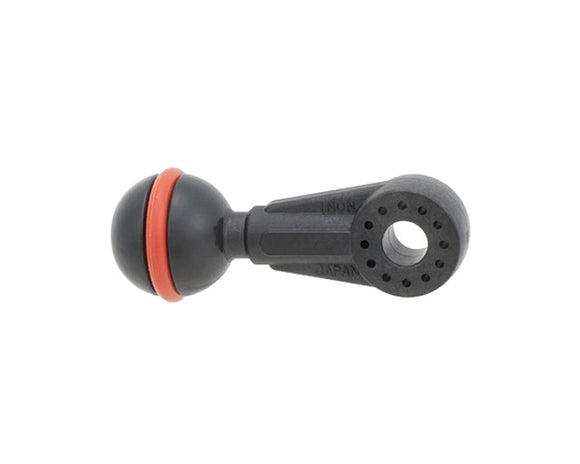

INON YS ADAPTER MV

An adapter to attach YS joint equipped product such as INON Z-22 strobe, SEA&SEA YS series strobe, "Single Light Holder LE", "Single Light Holder LF" or" Z Joint", on an arm or "Direct Base III" via clamp. The ball-joint is made from plastic to provide flexible strobe positioning without loosening a clamp to provide comfortable strobe aiming.

SPECIFICATIONS:

• Full length: 67mm (2.6in)
• Effective length: 45.5mm (1.8in)
• Weight: 20g (0.7oz) [air] / approx.7g (0.2oz) [underwater]

COMPATIBLE STROBE/LIGHT ETC.

Directly attached

• INON Z-22, SEA&SEA YS series strobe

(excluding particular model such as YS-300, YS-350 etc.)

• Single Light Holder LE, Single Light Holder LF

Attached via optional "Z Joint"

• Z-330, D-200, S-2000, Z-240, D-2000,
• D-2000S, D-2000W/Wn, D-180 (*1), D-180S,
• Z-220 (*1), Z-220F, Z-220S (*1)
• Strobe Light Holder LE, Double Light Holder LE, Quad Light Holder LE,
• Strobe Light Holder LF

Attached via optional "YS Adapter Fixing Bolt"

• Z-330, D-200, S-2000, Z-240, D-2000,
• D-2000S, D-2000W/Wn, D-180, D-180S, Z-220, Z-220F, Z-220S

(*1) Particular production lot of "Z-220", "Z-220S", "D-180" is not compatible with the "Z Joint". Refer to "Z Joint" section for detail.
